Hotel Luggage Security Scanning X Ray Machine Xld-5030c

Model XLD-5030C X ray baggage scanner

Tunnel size 500(w)× 300(h)mm
1. Alarm by sounds & light
2. Network interface could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray transmit ray under automatic control, avoids the miss
4. Image monitoring for user-friendly the monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
5. Simple operation by mouse without keyboard and work table, control by mouse, save space.
6. Turn off by a key control turn off the machine only need one step revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
7. Eagle-eye could be expediently observing enlargement area.
8. Estimate malfunction by self automatic estimate malfunction and prompt message, helpful for the maintenance.

Technical data
Conveyor speed 0.22 m/s
Conveyor max load 50 kg
Single inspection dosage < 1.5µ Gy
Wire resolution 0.1mm metal line
Steel penetration 30mm armor plate
Film safety for ISO 1600
Maximum leakage radiation <0.3µ Gy/h
X-ray generator
Orientation vertically upward
Tube current 0.4~0.5mA(adjustable)
Anode voltage 80 kv(adjustable)
Angle 60degree
Generator cooling/working periods sealed oil bath with forced air/100%
Image performance system
X-ray sensor l type photo-diode array detector, 12bit
Monitor high resolution 17inch color LCD display
Color quality 24 bit real colors
Edge enhancement object contour edge is more distinct
Super image enhancement image detail is more distinct
Image recurrence display previous twenty images and process any one of them
Image restoration restore image to initial status at the time of stopping conveyor
Image storing real time store any image and process it in operation status
Multi-energy function
Multi-energy color display organic material for orange, display inorganic material for blue, and display mixture for green
High energy/low enercy switch to display two energy type, high energy stands for metal etc., low energy stands for nonmetallic
Auxiliay function for drugs & explosives help to detect such dangerous material as drugs & explosives etc.
Audible & visible alarm give sound and visible signal when conforming to condition

Operating environment
Storage temperature -20degree to 60degree
Operating temperature 0degree to 45degree
Relative humidity 20 to 95% non-condensing
System power 220 vac (± 10%) 50± 3Hz
Power wastage 1.0 kw (max)
Noise <65dB Model XLD-5030C X ray baggage scanner

Tunnel size 500(w)× 300(h)mm
1. Alarm by sounds & light
2. Network interface could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray transmit ray under automatic control, avoids the miss
4. Image monitoring for user-friendly the monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
5. Simple operation by mouse without keyboard and work table, control by mouse, save space.
6. Turn off by a key control turn off the machine only need one step revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
7. Eagle-eye could be expediently observing enlargement area.
8. Estimate malfunction by self automatic estimate malfunction and prompt message, helpful for the maintenance.

Technical data
Conveyor speed 0.22 m/s
Conveyor max load 50 kg
Single inspection dosage < 1.5µ Gy
Wire resolution 0.1mm metal line
Steel penetration 30mm armor plate
Film safety for ISO 1600
Maximum leakage radiation <0.3µ Gy/h
X-ray generator
Orientation vertically upward
Tube current 0.4~0.5mA(adjustable)
Anode voltage 80 kv(adjustable)
Angle 60degree
Generator cooling/working periods sealed oil bath with forced air/100%
Image performance system
X-ray sensor l type photo-diode array detector, 12bit
Monitor high resolution 17inch color LCD display
Color quality 24 bit real colors
Edge enhancement object contour edge is more distinct
Super image enhancement image detail is more distinct
Image recurrence display previous twenty images and process any one of them
Image restoration restore image to initial status at the time of stopping conveyor
Image storing real time store any image and process it in operation status
Multi-energy function
Multi-energy color display organic material for orange, display inorganic material for blue, and display mixture for green
High energy/low enercy switch to display two energy type, high energy stands for metal etc., low energy stands for nonmetallic
Auxiliay function for drugs & explosives help to detect such dangerous material as drugs & explosives etc.
Audible & visible alarm give sound and visible signal when conforming to condition

Operating environment
Storage temperature -20degree to 60degree
Operating temperature 0degree to 45degree
Relative humidity 20 to 95% non-condensing
System power 220 vac (± 10%) 50± 3Hz
Power wastage 1.0 kw (max)
Noise <65dB

Aluminum plate&bar heat exchangers ( Air Cooler , oil cooler, Aluminum Oil Coolers, Water Cooler and Combi Coolers) have been widely applied

in all kinds of engineering machineries including concrete blender, concrete pump, crane, drilling Machinery,excavator,

loader, road roller etc.

Advantage:

Compact, Lightweight, High Efficient Heat Transfer

Application:

Concrete Blender Cooler

Concrete Pump Cooler

Crane Cooler

Drilling Machinery Cooler

Excavator Cooler

Loader Cooler

Road Roller Cooler

More

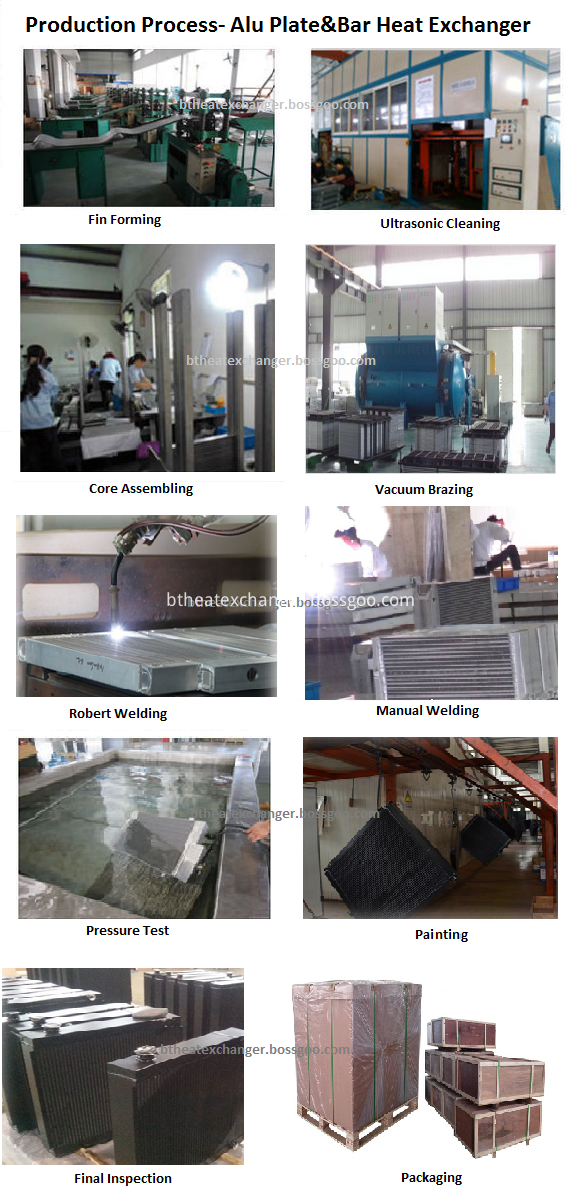

Material&Structure: Aluminum Plate-bar

Core : High strength, high heat conductivity,high safety coefficient.

Supersonic Cleaning: High efficiency,little corrosion to metal , few pollution.
Vacuum Brazing : Strict control of vacuum degree, temperature and time.
Argon Welding : Weld Gaps straight appearance , squamous uniform.
Test : Air tightessn test and Hydraulic Pressure

Fins: offset fin, straight fin, perforated fin, louvered fin, corrugated fin

FAQ

Q1:Could you customize oil cooler/Heat Exchanger?

We can manufacture plate-fin heat exchanger/oil cooler /intercooler according to your drawings or samples or parameter requirement.

Q2: I want to buy your products, how can I pay?

A :You can pay via T/T

Q3: How can you guarantee the quality?

A: One year's warranty against B/L date.

Q4: If we don`t find what we want on your website, what should we do?

A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.

Q5: Can we buy samples of each item for quality testing?

A: Yes, we understand quality test is important and we are glad to send the sample for quality testing.

Q6: What is the lead time?

A: Normal : Plate-fin heat exchanger for 2~3 weeks; Tube&fin or stacked layer coolers for 5 weeks. Exact time upon negotiation .
