2.0ton Hydraulic Front End Loader with Low Price

Model NO.: ZL20F
Color: Yellow
Engine: Zh4102
Rated Load: 2000kg
High Quality: Best Price
Palce of Origin: Shandong, China
Trademark: map power
Transport Package: 1 Units in 40′hq
Specification: ISO9001
Origin: China
HS Code: 84295100
2.0ton Hydraulic Front End Loader with Low PriceMini Wheel Loader 2000kg with CE ZL20F


2.0ton hydraulic front end loader with low price

Rated Loading weight 2000kg
Rated Bucket Capacity 1.10m3

Multi-function Wheel Loader 2.0 Ton can be with Snow Blade, Snow bucket, Pallet fork, Grapple fork, 4 in 1 Bucket, Baler, Grader, road sweeping machine, snow blower, light bucket, auger and etc.
Wheel loader 2.0Ton equip with: Hydraulic 280 torque converter, 3-way pilot control, adjustable steering wheel, quick hitch, luxury seat, new cabin with warm and new engine cover, bigger tire.

Performance Features

The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.
The wheel loader uses a central articulated frame and load sensing hydraulic steering gear. The machine can achieve a short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving. )The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.
The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good traffic ability and larger traction.
The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.


The ZL20 wheel loader is used for loading or transporting sands, sandstone, coal residue, and so on for road construction, environmental sanitation, and the small and medium-sized civil engineering, or in the station, warehouses and other places. It can be combined with auto-trucks of 3-5 tons to load and unload gods, and can conduct bulldozing, digging, hoisting and other operations.

Whole weight 7480KG
Highest walking speed 27km/h
Engine Model ZH4102
Engine Power 45KW/2400RPM
Min. Fuel consumption 221g/kw. H
Engine type 4 Cylinders diesel engine
Chinese well-known brand
Dump cleanrance 2800mm
Min. Turning radicus 4239mm
Overall dimension 5910X1910X2810mm
Drive type 4WD
Transmission gear box with torque convertor
Shipment 2units shipped in 1X40HC
Gear 4 forward and 2 backward
Tread 1440mm
Wheel base 2150mm.
2.0ton Hydraulic Front End Loader with Low Price
Overall Dimension
1 Length(with bucket on ground) 5850(mm)
2. Width(to outside of wheels) 2050(mm)
3 Height(To the top of the cab) 2860(mm)
4 Wheel base 2400(mm)
5 Tread 1640(mm)
6 Min. ground clearance 310(mm)
Main Technical Specification
1 Rated load 2000(Kg)
2 Operating weight 5200KG
3 Rated bucket capacity 1.2(CBM)
4 Bucket type Heavy-duty bolt teeth
5 Max. breakout force            51kN
6 Max. dump clearance 2950(mm)
7 Min. turning radius 5251mm
8 Driving system Hydraulic converter
9 Traveling speed(Km/h) 2 forward and 2 reverse
Diesel engine
1 Model WEICHAI 4108 OR
CUMMINS 4BT3.9-C100
2 Type In-line arrangement. Water cooling
3 Rated output 60(kW) OR 75KW
4 Inter-bore of cylinder/stroke 108 (mm)
5 Rated speed 2400(r/min)
6 Max. Torque 275(N.M)
7 Starting type Electric
8 Min. specific fuel consumption 235(g/Kw.h)
Transmission System
Torque Converter
1 Model YJ280
2 Type Fixed-spindle power shift
3 Cooling type Pressure oil circulating
Transmission case
1 Model MAP
2 Type Power  shift, spur gear constantly in mesh
3 Gear shift position 2 Forward and 2 reverse gears
Axle and Tire
1 Type of main reducer spiral bevel gear, single stage
2 Size of tire 20.5/70-16,16.70-20 for optional
Brake system
1 Service brake Air assisted oil on four wheel
2 Parking brake Hand operated
Steering  System
1 Type Middle articulated frame with hydraulic power steering

Their rollers and the outer wheels are arranged in a right angle intersecting intersecting. They can bear the load from all directions at the same time (such as axial, thrust or momentum hormones, etc.). Because of the linear contact between the roller and the track surface, the possibility of the axis to bear the load and the elastic deformation is very small. This type of bearing is widely used in industrial robots, working machines and medical facilities. It needs high rigidity, high speed and high speed to ensure precise occasions.

In cross roller bearings, cylindrical rollers are perpendicular to each other through spacer retainers on the top, so 1 cross roller bearings can bear all loads of radial load, axial load and torque load. Ring size is the minimum limit of miniaturization, especially very thin type is small size close to the limit, and has high rigidity, so the most suitable for use in industrial robot joint or rotating parts, machining center machine rotary table, hand rotating parts, precision rotary table, medical machine, metering device, IC manufacturing equipment etc.

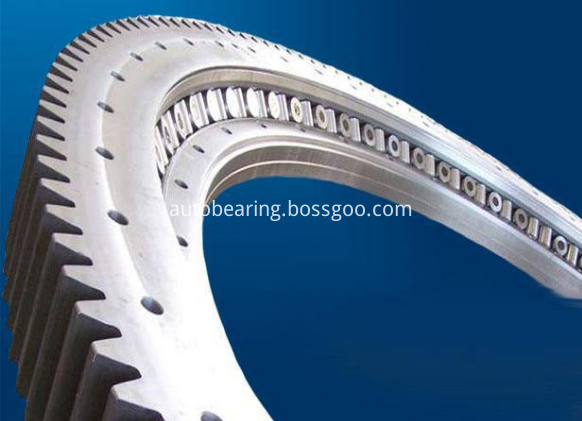

crb

1. Excellent rotation accuracy
The inner structure of the Cross Roller Bearing is arranged in 90 degrees perpendicular to each other by the roller.
The roller is equipped with a spacer or isolation block between the rollers to prevent the rolling of the rollers from being examined each other. In addition, the phenomenon of roller contact or locking will not occur. At the same time, because the inner and outer ring is a segmented structure, the clearance can be adjusted, even if the preload is applied, high accuracy rotation motion can also be achieved.
2. Simplification of operation and installation
The outer ring or inner ring, which is divided into 2 parts, is fixed together after loading the roller and the holder, so the operation is very simple.
3. Bear large axial and radial load
The roller is arranged vertically through the spacer retainer on a 90 degree V groove rolling surface.
4. Greatly save the installation space
The size of the inner and outer ring cross Roller Bearing is miniature minimal, especially ultra-thin structure is small size close to the limit, and has high rigidity, so the most suitable for industrial robot joints or rotating parts, machining center of the rotary table, the robot rotating parts, precision rotary table, medical instrument IC, measuring equipment, manufacturing device widely used.
5. high speed ability
6. reducing shaft length and machining cost, thermal expansion leads to a limited change in geometric size.
7. the nylon separator is used, the moment of inertia is low, the starting torque is low, and the angle degree is easy to control.
8. optimization of pretightening force, large rigidity, high precision of guiding roller
9. carbon steel provides excellent impact resistance and surface abrasion resistance
10. simple but fully lubricated

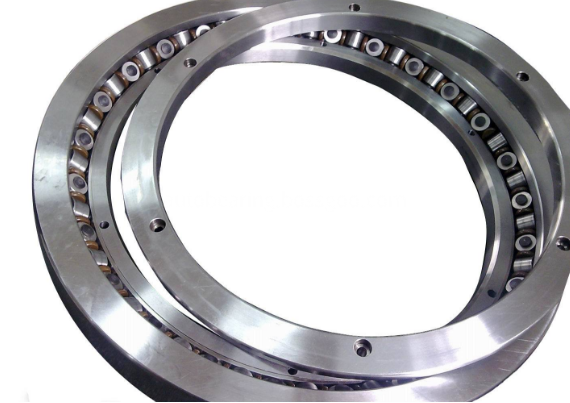

crb1


Crb Bearing

Crb Bearing,Cross Roller Slewing Bearing,Crb Turntable Slewing Bearing,Cross Roller Slewing Bearing Crb
