In the world of metal fabrication, achieving precision, efficiency, and adaptability is crucial for success. Among the tools that play a key role in shaping metal components with accuracy and consistency is the CNC Press Brake. Renowned for its capacity to bend sheet metal into precise angles and forms, the CNC press brake is an essential asset across industries ranging from automotive and aerospace to electronics and construction.
This article delves into the many facets of CNC press brakes, exploring their design, operational principles, notable features, types, benefits, and applications. We’ll also look at how CNC press brakes have revolutionized metalworking by enhancing precision, cutting down setup times, and providing better control over intricate bending tasks.
### What is a CNC Press Brake?

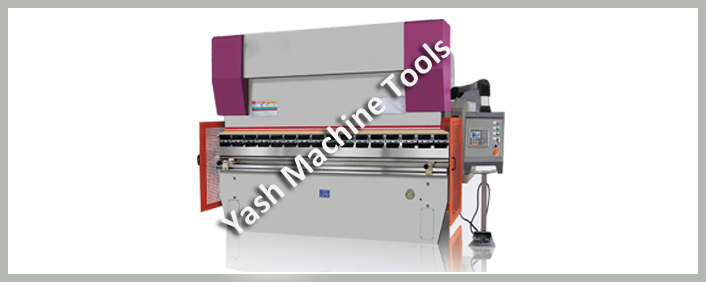

A CNC press brake is a computer-controlled machine utilized to bend and shape metal sheets into predetermined shapes and angles. "CNC" stands for Computer Numerical Control, meaning the machine is programmed to execute precise bending operations based on digital instructions. Unlike conventional manual press brakes, CNC press brakes rely on software to manage the movement of the ram and the back gauge, enabling highly accurate and repeatable bending procedures.
The primary elements of a CNC press brake include the ram, which holds the upper die and moves vertically to exert pressure on the workpiece, and the bed, which holds the lower die and supports the sheet metal. The combination of the upper and lower dies determines the form and angle of the bend. The CNC system governs the positioning of the ram and back gauge, ensuring the metal is bent exactly to the desired specifications.
### Working Principle of a CNC Press Brake
The functioning of a CNC press brake is rooted in the principle of controlled deformation. When the ram presses the metal sheet between the upper and lower dies, the material is compelled to bend. The CNC system controls the movement of the ram and back gauge to guarantee that the bend angle, depth, and position are accurate.
Here's a step-by-step breakdown of how a CNC press brake operates:
1. **Loading the Metal Sheet**: The operator places the metal sheet onto the bed of the press brake. The sheet is aligned with the back gauge, which is regulated by the CNC system.
2. **Programming**: The operator inputs the bending parameters into the CNC controller, including the bend angle, position, and the number of bends required. This data is translated into digital instructions that guide the movement of the ram and back gauge.
3. **Bending**: Once the program is set, the ram moves downward, pressing the metal sheet between the dies. The pressure applied by the ram forces the sheet to bend to the desired angle.
4. **Multiple Bends**: If multiple bends are necessary, the CNC system automatically adjusts the position of the back gauge, enabling the sheet to be repositioned for the next bend without manual intervention.
5. **Final Output**: After the bending process is complete, the CNC press brake produces a precisely bent metal component that matches the programmed specifications.
### Key Features of a CNC Press Brake
CNC press brakes are crafted with advanced features that make them highly effective and precise for contemporary manufacturing requirements. Some of the key attributes include:
1. **CNC Controller**: The CNC controller serves as the heart of the press brake, permitting operators to program complex bending sequences with high precision. The controller calculates the bending angle, back gauge position, and ram movement, ensuring accurate and repeatable outcomes.
2. **Back Gauge**: The back gauge is an adjustable mechanism that positions the metal sheet at the right distance from the dies. The CNC system automatically adjusts the back gauge to ensure the sheet is positioned correctly for each bend, making the process quicker and more precise.
3. **Hydraulic or Electric Drive Systems**: CNC press brakes can be powered by hydraulic or electric systems. Hydraulic press brakes deliver high force for heavy-duty applications, while electric press brakes provide faster speeds and superior energy efficiency.
4. **Precision Tooling**: CNC press brakes employ interchangeable upper and lower dies to create different bend profiles. Precision tooling guarantees that the bends are consistent, even for complex shapes and angles.
5. **Multiple Axis Control**: Advanced CNC press brakes offer control over multiple axes, enabling more intricate bending operations. For instance, the machine can regulate the position of the ram, the back gauge, and side supports, facilitating the creation of intricate components with multiple bends.
6. **Automatic Crowning**: Crowning is a method used to counteract deflection in the press brake’s bed or ram during the bending process. CNC press brakes often incorporate automatic crowning systems that adjust the bed or ram to ensure uniform bending across the entire length of the workpiece.
7. **User-Friendly Interface**: Modern CNC press brakes come equipped with intuitive touch-screen interfaces, making it simple for operators to program and monitor the bending process. This reduces the learning curve and allows operators to perform complex bending operations effortlessly.
### Types of CNC Press Brakes
CNC press brakes exist in several varieties, each tailored for specific applications and industries:
1. **Hydraulic CNC Press Brake**: Hydraulic CNC press brakes are propelled by hydraulic cylinders that supply high pressure and force for bending thick and heavy materials. These machines are perfect for applications requiring substantial bending force, such as the fabrication of large metal components.
2. **Electric CNC Press Brake**: Electric CNC press brakes utilize electric motors to drive the ram, offering greater precision and faster operation compared to hydraulic models. They are energy-efficient and ideal for applications demanding high-speed production and accuracy, like the electronics and automotive industries.
3. **Hybrid CNC Press Brake**: Hybrid CNC press brakes blend the advantages of both hydraulic and electric systems. They provide high power for heavy-duty bending while offering the energy efficiency and precision of electric drives.
4. **Servo-Driven CNC Press Brake**: Servo-driven CNC press brakes employ servo motors to control the movement of the ram and back gauge, delivering exceptional control over the bending process. These machines are renowned for their high precision and repeatability, making them ideal for industries requiring tight tolerances.
### Advantages of CNC Press Brakes
CNC press brakes present numerous benefits over traditional manual press brakes, making them a preferred option in modern metalworking and manufacturing:
1. **High Precision**: CNC press brakes are celebrated for their ability to produce highly accurate bends, even in complex shapes. The CNC controller ensures each bend is executed to the exact specifications, minimizing errors and material wastage.
2. **Increased Productivity**: The automation provided by the CNC system enables faster setup times, reduced manual labor, and higher production speeds. Multiple bends can be performed in a single setup, boosting overall efficiency.
3. **Repeatability**: Once a bending program is saved, it can be reused for future jobs, ensuring consistent results every time. This repeatability is particularly valuable for mass production and batch processing.
4. **Reduced Material Waste**: CNC press brakes decrease the risk of human error, reducing the amount of material wasted due to incorrect bends. The precision of CNC programming ensures each piece is bent correctly the first time.
5. **Versatility**: CNC press brakes can handle a wide range of materials and thicknesses, from thin aluminum sheets to thick steel plates. Their versatility makes them suitable for various industries and applications.
6. **Complex Bending Operations**: CNC press brakes are capable of performing complex bending operations, including multi-axis bending, hemming, and offset bending. This capability opens up new possibilities for creating intricate components with precision.
### Applications of CNC Press Brakes
CNC press brakes are extensively utilized across various industries for their ability to produce precise metal components. Some common applications include:
- **Automotive Manufacturing**: CNC press brakes are used to manufacture parts such as body panels, chassis components, and brackets for vehicles.
- **Aerospace Industry**: These machines are employed to fabricate structural components for aircraft, including wings, fuselage parts, and engine components.
- **Electronics Industry**: CNC press brakes are used to create enclosures, brackets, and connectors for electronic devices.
- **Construction**: Press brakes are used to fabricate metal components for buildings, bridges, and infrastructure projects.
- **Metal Fabrication**: CNC press brakes are essential for custom metal fabrication, including creating parts for machinery, appliances, and equipment.
### Conclusion
The CNC Press Brake is a potent and adaptable machine that has reshaped how industries approach metal bending and fabrication. Its ability to produce highly accurate bends with minimal manual intervention makes it an indispensable tool in modern manufacturing. Whether used for large-scale production or intricate custom projects, CNC press brakes offer the precision, efficiency, and versatility required to meet the demands of today’s competitive industrial landscape.
Investing in a CNC press brake allows manufacturers to streamline their operations, reduce material waste, and ensure the highest level of precision, making it an invaluable asset in any metalworking facility.
